Digital Coating Thickness Probes
 | The Elcometer range of dry film thickness probes, provide reliable and accurate coating thickness measurements on almost any metal substrate, whether ferrous or non-ferrous.
These probes expand on the technology of the Elcometer 456 and Elcometer 355 gauges, and provides each gauge with the diverse versatility required to get the job done.
Are you new to the coating thickness industry, or would simply like more information on our gauges? View our page on learning more about Elcometer Coating Thickness Gauges.
Having trouble deciding which probe is the correct choice? Read our page on choosing the correct probe for coating substrates. |
Unique probe modules allow the Elcometer 355 Standard Coating Thickness Gauges to be versatile and flexible for any measurement application.
Probe modules can be freely interchanged as required for both ferrous (F) and non-ferrous (N) metal substrates.
Most probe modules are capable of an accuracy of ±1% of the reading on a variety of coatings and surfaces.
Telescopic probes extend from 410mm (16") to 1100mm (43").
Need more information? Read our page on choosing the correct probe for coating substrates.
|
All Elcometer 456 probes are fully interchangeable and are available in a number of designs and scale ranges to meet your specific application. Ferrous probes measure non magnetic coatings on ferro-magnetic substrates. Elcometer 456 ferrous gauges accept any ferrous probe. Non-ferrous probes measure non conductive coatings on non-ferrous metal substrates and Elcometer 456 non-ferrous gauges accept any non-ferrous probe. Dual FNF probes measure both ferrous and non-ferrous applications with automatic substrate detection. Elcometer 456 FNF gauges accept all ferrous, non-ferrous and dual FNF probes. Every Elcometer 456 gauge and separate probe is supplied with a Test Certificate free of charge. For separate gauges, the test measurements are generated using factory reference probes. Need more information? Read our page on choosing the correct probe for coating substrates.
|

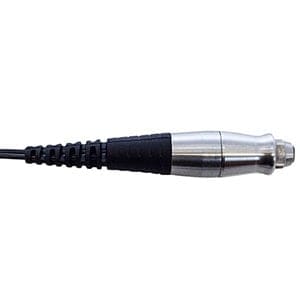

Rugged, intelligent probes with field replaceable tips, measure up to 10mm (390mils)
|
|
|
|
|
|
