Elcometer 456 Probe Range
 | All Elcometer 456 probes are fully interchangeable and are available in a number of designs and scale ranges to meet your specific application.
Ferrous probes measure non magnetic coatings on ferro-magnetic substrates. Elcometer 456 ferrous gauges accept any ferrous probe. Non-ferrous probes measure non conductive coatings on non-ferrous metal substrates and Elcometer 456 non-ferrous gauges accept any non-ferrous probe. Dual FNF probes measure both ferrous and non-ferrous applications with automatic substrate detection. Elcometer 456 FNF gauges accept all ferrous, non-ferrous and dual FNF probes.
Unless stated, Elcometer separate probes have a maximum operating temperature of 150°C (300°F), PINIP™ probes have a maximum operating temperature of 80°C (176°F).
Every Elcometer 456 gauge and separate probe is supplied with a Test Certificate free of charge. For separate gauges, the test measurements are generated using factory reference probes.
Need more information? Read our page on choosing the correct probe for coating substrates. |

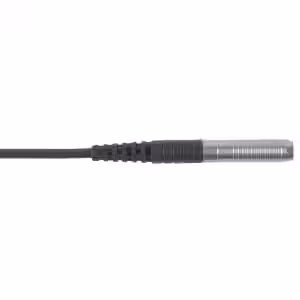

Measures coatings on both flat and curved surfaces.
All Elcometer probes are supplied with a test certificate and a set of calibration foils appropriate to the scale range of the probe.
|

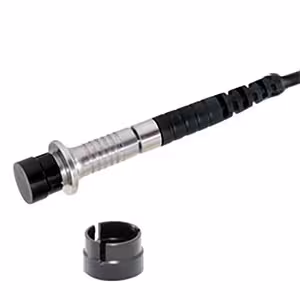

Featuring a highly durable ‘snap on’ replaceable probe cap, the Elcometer 456 Ultra/Scan Probe is a revolutionary design which allows users to take individual readings or rapidly scan large surface areas - without damaging the probe or the coating.
All Elcometer probes are supplied with a test certificate and a set of calibration foils appropriate to the scale range of the probe.
|
Plug-in probes convert a separate gauge into an integral gauge.
All Elcometer probes are supplied with a test certificate and a set of calibration foils appropriate to the scale range of the probe.
|
For use on hot coated materials up to 250° C (480° F).
All Elcometer probes are supplied with a test certificate and a set of calibration foils appropriate to the scale range of the probe.
|

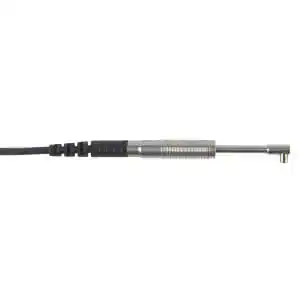

For taking readings where access is restricted.
All Elcometer probes are supplied with a test certificate and a set of calibration foils appropriate to the scale range of the probe.
|
Ideal for measuring coatings on edges, narrow pipes or small surface areas.
All Elcometer probes are supplied with a test certificate and a set of calibration foils appropriate to the scale range of the probe.
|

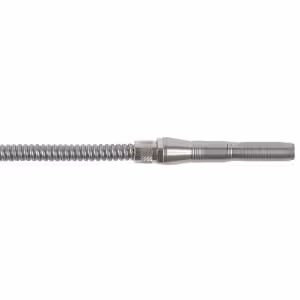

Probes with metal reinforced heavy duty cables, reducing the risk of cable damage.
All Elcometer probes are supplied with a test certificate and a set of calibration foils appropriate to the scale range of the probe.
|
Chemical resistant washable probes - ideal for anodizing environment.
All Elcometer probes are supplied with a test certificate and a set of calibration foils appropriate to the scale range of the probe.
|

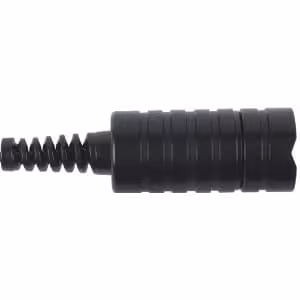

Sealed for use underwater at depth even in diving gloves.
All Elcometer probes are supplied with a test certificate and a set of calibration foils appropriate to the scale range of the probe.
|
Large surface area probes for soft reach materials (HVCA approved).
All Elcometer probes are supplied with a test certificate and a set of calibration foils appropriate to the scale range of the probe.
|
Extending right angle probes for out of reach areas.
All Elcometer probes are supplied with a test certificate and a set of calibration foils appropriate to the scale range of the probe.
|
|
|
|
|
|
