Calibration Foils & Standards
 | Foil sets, zero plates and coated thickness standards. Calibration foils are required to verify the accuracy of measurements. Calibration foils or 'shims' are the most convenient way of creating a coating thickness standard on the substrate material, surface finish or form. This is the ideal method for adjusting the calibration of the coating thickness gauge to ensure the greatest possible accuracy. |

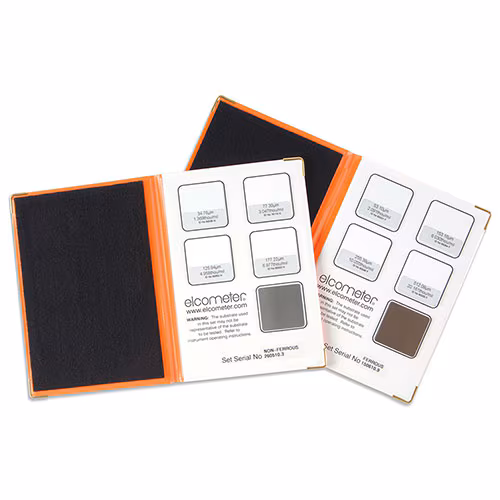

The Elcometer 995 Coated Thickness Standards are hard wearing, durable and are mounted in a protective folder.
They provide the user with an ideal method to accurately measure the performance of the coating thickness gauge.
|

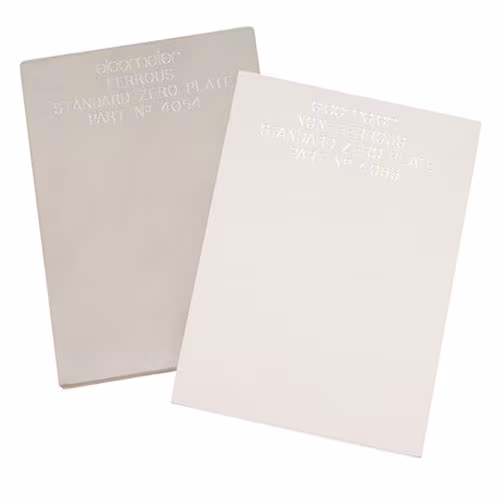

Elcometer Zero Test plates are for use in the laboratory, on the production line or on site.
When used in conjunction with a set of foils, these test plates are ideal to test a coating thickness gauge’s functionality and calibration.
In some cases, it may be difficult or impractical to obtain an un-coated substrate. For this reason Elcometer provides a range of Zero Test Plates.
|

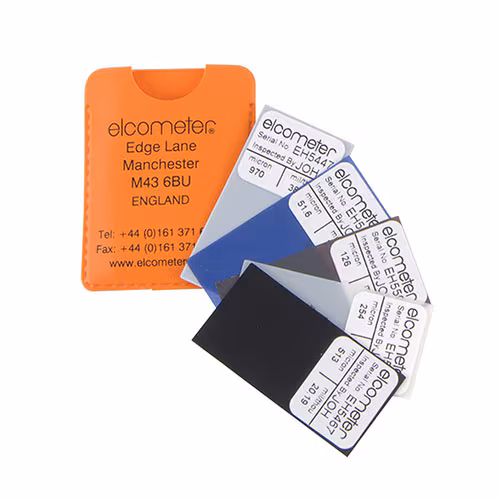

Calibration foils or 'shims' are the most convenient way of creating a coating thickness standard on the substrate material, surface finish or form. This is the ideal method for adjusting the calibration of the coating thickness gauge to ensure the greatest possible accuracy.
Features:
- Metric and Imperial values displayed on each foil
- Available individually or in foil sets
- Each foil has unique serial number for traceability
- Available in thicknesses from 12.5µm to 25mm (0.5 to 980mils)
Precision foils have a ±1% accuracy. Foils below 50µm (2.0mils) have an accuracy of ±0.5µm (0.02mil).
|

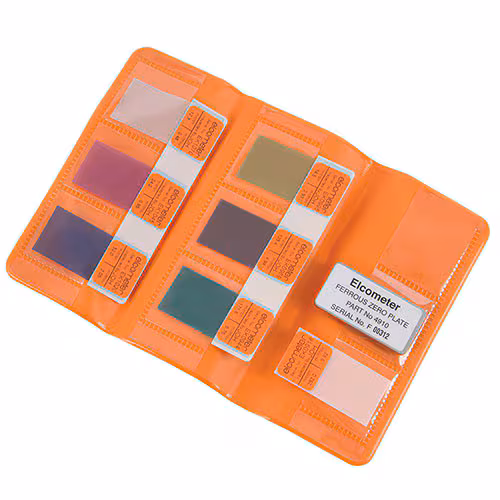

Calibration foils or 'shims' are the most convenient way of creating a coating thickness standard on the substrate material, surface finish or form. This is the ideal method for adjusting the calibration of the coating thickness gauge to ensure the greatest possible accuracy.
Features:
- Metric and Imperial values displayed on each foil
- Available individually or in foil sets
- Each foil has unique serial number for traceability
- Available in thicknesses from 12.5µm to 25mm (0.5 to 980mils)
Precision foils have a ±1% accuracy. Foils below 50µm (2.0mils) have an accuracy of ±0.5µm (0.02mil).
|
|
|
|
|
|
