Mandrel Bend Testing
 | A coated metal sheet is bent over a conical or cylindrical mandrel and cracks, color change, adhesion etc. of the coating are evaluated. Corresponding results, produced by decreasing mandrel sizes, indicate the degree of elasticity of the coating. A conical mandrel allows the user to undertake fewer tests to achieve a similar result to cylindrical mandrels. |

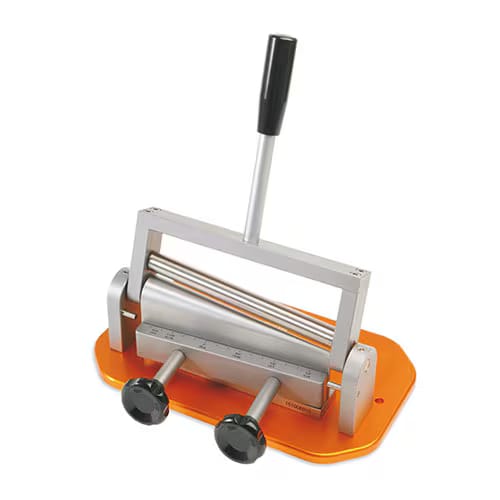

The 1510 Bend Tester is a mechanical tester used to determine the effects of bending on the elasticity, adhesion and elongation properties of cured coatings on sheet metal. The frame has a bending lever with a roller which pivots on a steel conical mandrel with a diameter from 3.2 - 38.1mm (0.12 - 1.5"). A graduation indicates the mandrel diameter in both mm and inches. The specimen can be bent on part of, or along, the entire length of the mandrel, and the results corresponding to different test diameters can be observed in a single operation. This is ideal for use in conjunction with the cylindrical mandrel, as it identifies the stop point for more focused testing. As the instrument is machined out of a solid block of steel, the particularly robust and rigid construction provides excellent resistance to wear and provides long service life. A large, sturdy anodized base, which can be permanently fixed to a workstation, ensures stability during testing.
|

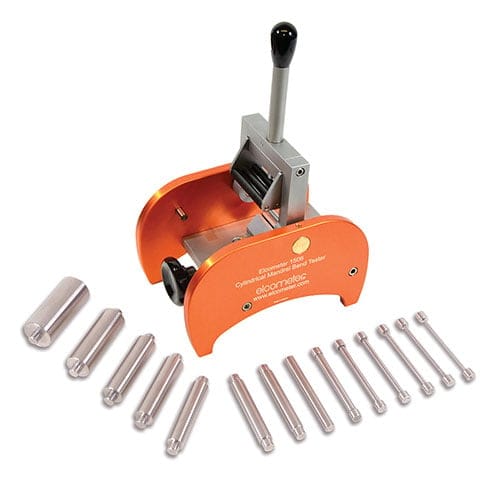

Similar in use to the Elcometer 1510, the Elcometer 1506 is also a very robust mechanical unit for determining the elasticity, adhesion and elongation properties of cured coatings on sheet metal. The frame has a bending lever with height-adjustable rollers and a sliding vice for clamping the sample which means the test pieces are bent perfectly and regularly on decreasing mandrels until the desired effect can be observed. The instrument can be adjusted to the diameter of the mandrel used and the mandrels are easily changed. A wide range of mandrels with metric and imperial diameters is available. Mandrels are not supplied with the instrument and can be ordered as a set or individually.
|

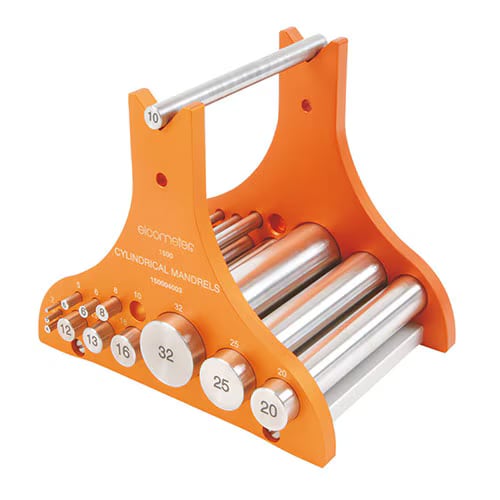

The Elcometer 1500 is a simple instrument for determining the elasticity, adhesion and cracking of dry paint on flat specimens, consisting of a mandrel support which also serves as a test stand. Coated metal sheets, maximum 150mm (5.9") in length x 100mm (3.93") wide, are manually and successively bent around mandrels of decreasing diameter until cracks appear.
|
|
|
|
|
|
