Elcometer Blasting Inspection Kit 1 | Imperial
Product Description

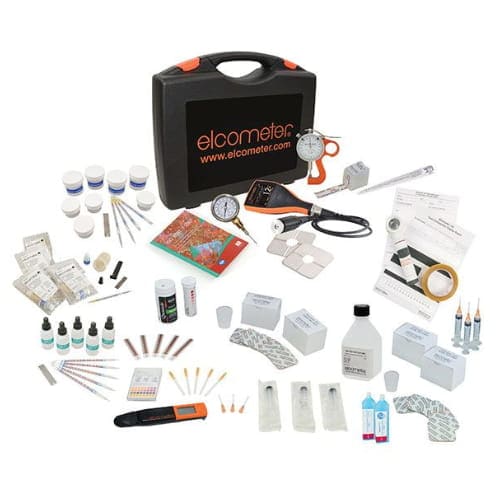

The Elcometer Blasting Inspection Kit is a surface preparation inspection kit providing a range of inspection equipment to test surface profile and surface contamination of blasted profiles.
An Elcometer 456 Gauge and probe can also be supplied. (Order separately if required.)
Measurement parameters include:
- Surface assessment
- Blast equipment inspection
- Surface profile
- Surface contamination
| Kit Contents | ||
| Model | Description | Customizable1,2 |
| Elcometer 128---3 | Pictorial Standards | SSPC-VIS 1 | |
| Elcometer 128---5 | Pictorial Standards | SSPC-VIS 3 | |
| Elcometer 102 | Needle Pressure Gauge | |
| Elcometer 103 | Blast Nozzle Gauge | |
| Elcometer 125 | Surface Comparator, Grit | |
| Elcometer 125 | Surface Comparator, Shot | |
| Elcometer 122 | Testex Replica Tape - Coarse, 0.8 - 2.5mils (20 - 64µm) | • |
| Elcometer 122 | Testex Replica Tape - X-Coarse, 1.5 - 4.5mils (38 - 115µm) | • |
| Elcometer 124 | Thickness Gauge | |
| Elcometer 134 | Chlor*Test Surface Testing Kit | |
| Elcometer 134 | Chlor*Test Abrasive Testing Kit | |
| Elcometer 134 | Chlor*Test Water Testing Kit | |
1Can be swapped for similar product.
2To customize your order please send a descriptive email to sales@elcometerusa.com with your online order number.
Or
Place your order over the phone 1.800.521.0635
Specifications
Part Number | Description | |
| Imperial | ||
Elcometer Blasting Inspection Kit 1 | ||
Elcometer Blasting Inspection Kit 2 | ||
Dimensions | Kit 1 | 495 x 420 x 175mm (19.49 x 16.54 x 6.89”) |
| Kit 2 | 575 x 475 x 205mm (22.64 x 18.70 x 8.07”) | |
Data Sheet & Downloads
Safety Data
Accessories
Standards
Can be used in accordance with:
AS 3894.5, AS 3894.6-A, AS 3894.6-C, AS 3894.6-D, ASTM D 2200, ASTM D 4417-A, ASTM D 4417-B, ASTM D 4417-C, BS 7079-C5, IMO MSC.215(82),IMO MSC.244(83), ISO 8501-1, ISO 8502-3, ISO 8502-5, ISO 8502-6, ISO 8502-9, ISO 8503-1, ISO 8503-2, ISO 8503-5, NACE RP0287, SANS 5772, SS 55900, SSPC Guide 15, SSPC VIS 1, SSPC VIS 2, SSPC VIS 3, SSPC VIS 4, SSPC VIS 5, US Navy NSI 009-32, US Navy PPI 63101-000
Standards in grey have been superseded but are still recognised in some industries.
