During the application of a coating, the presence of moisture in the environment, or on the work surface, often results in a poor quality finish. Problems such as poor adhesion of the coating, delayed drying time or premature corrosion of the substrate can occur.
Before proceeding, it is essential that the air temperature and relative humidity (RH) are measured to calculate the dew point. The difference between this and the surface temperature
is displayed as ∆T, with a warning if necessary.
The Elcometer 212 is a digital, pocket sized thermometer ideal for day to day use.
Incorporating a fast response stainless steel liquid probe, the Elcometer 212 Digital Pocket Thermometer provides temperature readings in under four seconds.
Housed in a water resistant case with integrated rubber seals and a moulded flush window, preventing dirt and leaks damaging the LCD display, the Elcometer 212 pocket thermometer is ideal for use in the harshest of environments.
The probe conveniently folds back into the side of the instrument, preventing damage when not in use.
The Elcometer 212 is a digital, pocket sized thermometer ideal for day to day use.
Incorporating a fast response stainless steel surface probe, the Elcometer 212 Digital Pocket Thermometer provides temperature readings in under four seconds.
Housed in a water resistant case with integrated rubber seals and a moulded flush window, preventing dirt and leaks damaging the LCD display, the Elcometer 212 pocket thermometer is ideal for use in the harshest of environments.
The probe conveniently folds back into the side of the instrument, preventing damage when not in use.
The Elcometer 214 is a simple, easy-to-use, non-contact thermometer which safely and accurately measures surface temperature of non-reflective materials using infrared technology.
With a user switchable measuring range of -35°C to 365°C or -31°F to 689°F, a digital display of the temperature is produced in less than one second.
The Elcometer 214 Infrared Digital Laser Thermometer has a D/T ratio (Distance-to-Target) of 8:1 and measures the emitted energy from a target spot one-eighth the size of the working distance.
As can be seen in the diagram, if the distance from the sensor optics to the target is 200mm (8") for example, the diameter of the measured area is 25mm (1").

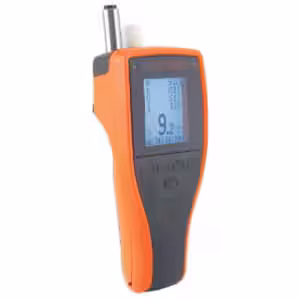

This rugged dew point meter is designed to measure and record all relevant climatic parameters required to determine whether the conditions are suitable for painting. The Elcometer 319 dew point meter can be used as a hand-held gauge or a stand alone data logger - ideal for monitoring climatic conditions over a period of time.
With its multi-lingual, large and easy to use illuminated display, users can record climatic parameters and store 25,000 records in up to 999 batches.
There is no need to sift through tables or measure using a dew point calculator. Take advantage of the USB and Bluetooth data output technology, and see how much on-the-job efficiency increases.
This rugged dew point meter is designed to measure and record all relevant climatic parameters required to determine whether the conditions are suitable for painting. The Elcometer 319 dew point meter can be used as a hand-held gauge with data logger - ideal for monitoring climatic conditions over a period of time.
With its multi-lingual, large and easy to use illuminated display, users can record climatic parameters and use the 10 reading rolling memory.
There is no need to sift through tables or measure using a dew point calculator. Take advantage of the USB data output technology, and see how much on-the-job efficiency increases. For Bluetooth enabled model, see the 319 Top Version.
Model 319 magnetic surface probe. K-Type connector allows measurement of surface temperature during remote logging. Operating range -40 to +200°C (-40 to+392°F). Accuracy±0.5°C (±1°F) 0.1°C (0.1°F).
