| Product Features - Elcometer 480 |
Standard
• |
Optional
• |
| |
Model B |
Model T |
| Measurement geometries |
60° |
60°, 20/60° or 20/60/85°* |
| Measurement units |
GU |
GU, HU† & % |
| Fast, accurate reading rate |
• |
• |
| Repeatable & reproducible measurements |
• |
• |
| Easy to use menu structure; in 30+ languages |
• |
• |
| Tough, impact, waterproof & dust resistant |
• |
• |
| Scratch & solvent resistant colour display; 2.4" (6cm) TFT |
• |
• |
| Rotating display: auto, 0°, 180° |
• |
• |
| Ambient light sensor; with adjustable auto brightness |
• |
• |
| Data output |
|
|
| USB live readings |
• |
• |
| USB batch download |
|
• |
| Bluetooth®: to PC, iOS or Android™ mobile devices |
|
• |
| USB & battery powered |
• |
• |
| Calibration Certificate |
• |
• |
| Manual gauge calibration |
• |
• |
| Auto gauge calibration; via RFID tagging of integrated calibration tile# |
|
• |
| On screen statistics - user selectable |
|
|
| Number of readings, Mean (average), Standard deviation |
• |
• |
| Highest reading, Lowest reading, Range |
|
• |
| Coefficient of variation |
|
• |
| Nominal value, High Limit value, Low Limit value |
|
• |
| Number above high limit, Number below low limit |
|
• |
| Measurement modes |
|
|
| Standard Mode |
• |
• |
| Auto Repeat Mode; programmable 10-180 readings per minute |
|
• |
| Scan Mode; 10 readings per second |
|
• |
| Differential Mode with Pass/ Fail mode; |
|
• |
| Limit Standards; up to 40 programmable standards |
|
• |
| Gauge & batch specific standard limits |
|
• |
| Gauge memory 40,000 readings in up to 2,500 batches |
|
• |
| Alpha-numeric batch names |
|
• |
| Fixed batch size mode |
|
• |
| Date and time stamp |
|
• |
| Gauge auto diagnostics |
• |
• |

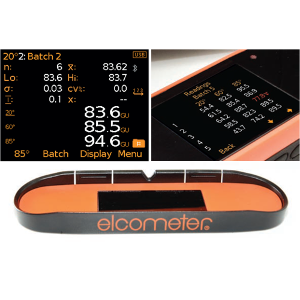

| Display modes; user selectable |
|
|
| Readings; gloss, % reflectance†, haze† |
• |
• |
| Selected statistics |
• |
• |
| Live trend graph; last 20 readings |
|
• |
| Scan bar |
|
• |
| Readings & differential (with pass/fail) |
|
• |
| Delete last reading |
• |
• |
| 2 year extended warranty |
• |
• |
| * Dependant on model |
† Haze on Dual and Triple models only |
| # Radio Frequency Identification; patent applied for |
|
|
|
|
