Factory calibrated to 39 different materials.

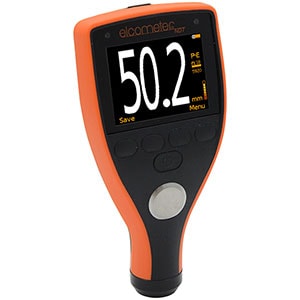

With a choice of calibration options and measurement modes, the MTG4 is ideal for taking readings on a wide range of coated and uncoated materials.
As well as all the features of the MTG2, the MTG4 has two calibration options. Using an uncoated sample of test material of a known thickness, the gauge can be calibrated using 1-Point calibration. Alternatively, the user can select one of 39 pre-set materials stored within the gauge including; aluminium, steel, stainless steel, cast iron, plexiglass, PVC, polystyrene and polyurethane.
Echo-Echo ThruPaintTM (E-E) measurement mode enables readings to be taken on coated materials with a thickness range up to 25.4mm (1”). In Echo-Echo ThruPaint™ mode, the coating thickness is ignored and the material thickness from the top surface of the material to the material density boundary is displayed.
Compatible with ElcoMaster™ software, individual readings can be downloaded via USB to PC or similar device for further analysis.
Pulsed - Echo Mode (P-E):
Ideal for pit and flaw detection, the total thickness from the base of the transducer to the material density boundary (typically the back-wall) is measured.
Echo - Echo ThruPaint™ Mode (E-E):
Also known as ThruPaint™ mode, the coating thickness is ignored and the material thickness from the top surface of the material to the material density boundary (typically the back-wall) is measured. To use Echo-Echo ThruPaint™ mode, a high damped, coating thickness transducer is required.
