Product Description
Factory calibrated for use on steel.

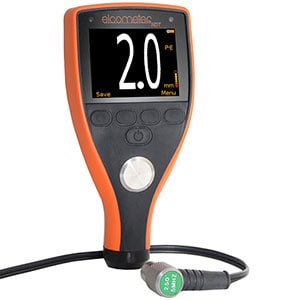

With automatic transducer recognition which ensures correct probe identification even when the transducer is changed, a measurement rate of 4Hz (4 readings per second) and integral zero disc ensuring maximum accuracy of ±1%, the MTG2 is ideal for taking basic thickness measurements.
The MTG2 is supplied complete with 5MHz, ¼” transducer and is pre-calibrated for measuring on steel only with a thickness range of up to 500mm (20”) in Pulsed-Echo (P-E) mode.
Compatible with ElcoMaster™ software, individual readings can be downloaded via USB to PC or similar device for further analysis.
Pulsed - Echo Mode (P-E):
Ideal for pit and flaw detection, the total thickness from the base of the transducer to the material density boundary (typically the back-wall) is measured.
Instruction Manual >>
