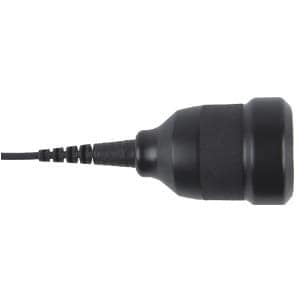

Designed to work with any of our Non-Ferrous or Dual FNF Elcometer 456 Separate Gauges.
Ideal for measuring thick coatings over non-ferrous metal substrates.
- Range: F - 0-980 mils (0-25mm) / N - 0-1200 mils (0-30mm)
- Accuracy*: ±1-3% or ±4.0 mil (±100µm)
- Resolution: 1.0 mil: 0-100 mils; 10 mils: 100-1200 mils (10µm: 0-2mm; 100µm: 2-30mm)
- Minimum convex surface radius - Flat Surface
- Minimum concave surface radius - Flat Surface
- Minimum headroom - 160mm (6.30")
- Minimum sample diameter: 58mm (2.30")
