Available in 10 or 20m lengths with a maximum working pressure of 12bar (174psi) and a 3 times safety margin, the following blast hose extensions have an internal diameter of 1” (25mm) and are ideal for when your blast hose is unable to reach the desired location. The following Elcometer blast hose extensions come complete with:
- Blast Hose
- Twinline Pneumatic Remote Control Hose
- 2 Quick Coupling
Tough Outer Cover
The tough weather resistant cover prolongs the life of the hose as it is manufactured using abrasion resistant and anti-static natural and styrene-butadiene rubber with a cloth impression.
Anti-Static and Abrasion Resistant Inner Wall
Abrasion resistant and manufactured out of natural and styrene-butadiene rubber compound with carbon black, in accordance with DIN53516, the Elcometer blast hose has an anti-static rating (R) of less than 106sq/m (48.8sq/ft) to protect the user from static build up.
2 Ply Braid Reinforcement
Elcometer’s blast hose features highly woven cord linings in a 2 ply cross pattern to improve hose strength and allow flexibility.

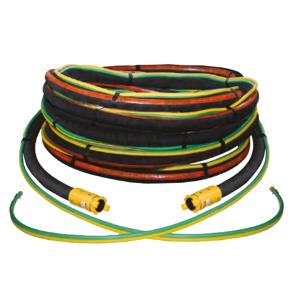

Elcometer 1" (25mm) ID 12bar (174psi) Blast Hose Extension with Nylon Quick Couplings - 10m (32.8ft)
Maximum Working Pressure :12bar (174psi)
Internal Diameter (ID) :25mm (1")
Hose Length :10m (32.8ft)
Outside Diameter (OD) :38mm (11/2")
Minimum Bend Radius :200mm (77/8")
Quick Coupling :Nylon
Part Number :BH25NN-10
