The Elcometer 510 Automatic Pull-Off Adhesion Tester accurately measures
the bond strength between a coating and its substrate. Choose your kit
size and gauge model below to see live pricing and add to cart.
SKU:Select Options
Quantity Available:Select Options
Kit Size:
Gauge Model:
Optional Certificate

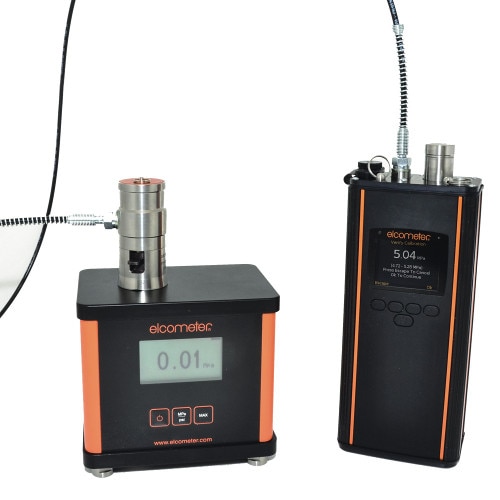

Before shipping, have our ISO/IEC 17025:2017 accredited laboratory verify your instrument:
Protective Coatings · Adhesion Testing · Quality Control
Elcometer 510 Automatic Pull-Off Adhesion Tester
Prove the bond. The Elcometer 510 uses an automatic hydraulic pump
for smooth, continuous pressure — delivering consistent, repeatable
pull-off adhesion results in the lab or out in the field.
meets ASTM D4541 & ISO 4624
IP64 equivalent
Bluetooth & USB
ElcoMaster® Ready
Overview
Measure coating adhesion with confidence
Pull-off adhesion testing gives you a definitive, quantified
measure of how well a coating is bonded to its substrate. The
Elcometer 510's automatic hydraulic pump applies smooth,
continuous pressure at a controlled rate — removing operator
variability and delivering repeatable, reproducible results.
Four interchangeable dolly sizes cover everything from
high-strength coatings to concrete.
10mm8 – 100 MPa (1200 – 14400 psi)
14.2mm4 – 50 MPa (600 – 7200 psi)
20mm2 – 25 MPa (300 – 3600 psi)
50mm0.3 – 4 MPa (50 – 580 psi)
Choose a configuration
Kit size and model — pick the right pairing
Every kit shares the same automatic gauge and accepts all four
dolly sizes. Select a kit by the dollies you test with most,
then choose Model S for preset pull rates or Model T for fully
adjustable rates, Bluetooth®, and onboard batch memory.
Optional standard & thin-substrate skirts (Elcometer 506 compatible)
Optional magnetic anchor clamp for vertical or at-height testing
Durable
Tough, impact, water & dust resistant — equivalent to IP64
Scratch & solvent resistant display

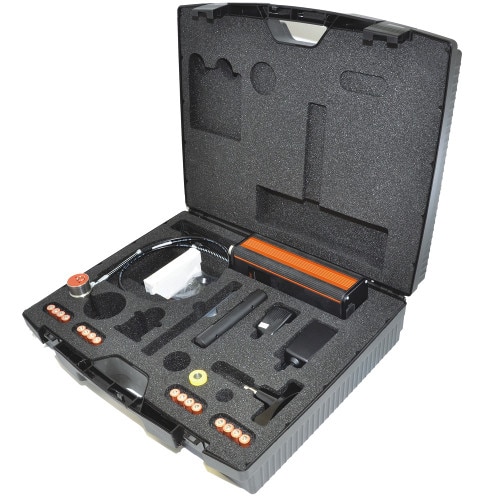

Supplied in a robust plastic transit case
Suitable for use in harsh environments
Powerful
Stores 60,000 readings across up to 2,500 batches (Model T)
Individual pull-rate graphs saved with each reading (Model T)
On-screen statistics: n, mean, σ, Hi, Lo, CV%
~200 pulls per battery charge; recharge in under 5 hours
Connected
Transfer data via USB, or Bluetooth® on Model T
Works with ElcoMaster® for professional report generation
View live pull-rate graphs in ElcoMaster® during a test
PC command: start & stop the gauge from a PC (USB)
At a Glance
The numbers that matter
±1%
Pressure accuracy (of full scale)
60K
Readings stored in up to 2,500 batches (Model T)
4
Dolly sizes: 10, 14.2, 20 & 50mm
~200
Pulls per battery charge
IP64
Dust & waterproof rating equivalent
100 MPa
Maximum pressure (10mm dolly)
Compliance
Meets the standards inspectors rely on
The Elcometer 510 can be used in accordance with major national
and international pull-off adhesion standards, letting you save
cohesive and adhesive failure attributes alongside each result.
Tough, impact, water & dust resistant — equivalent to IP64
Bright 2.4" (6cm) colour TFT display with ambient light sensor
Automatic rotating display (0° / 180°)
Multilingual menu structure
Switchable units — MPa, psi, N, N/mm²
On-screen statistics (n, mean, σ, Hi, Lo, CV%)
Pull rate indicator & trend graph
Pull rate graph (Load v Time)
—
Pull Rates
User-selectable preset rates (Standard mode)
Fully adjustable rates (Advanced mode)1
—
0.02 – 5.6 MPa/s (dolly dependent)
Memory & Logging
Gauge memory — maximum number of readings
Last 60 readings
60,000 readings in 2,500 batches
Batch review with date, time & attribute info
—
Data Output
USB — live readings & batch transfer
Bluetooth® to computer, Android™ & iOS2 devices
—
ElcoMaster® software & USB cable
Accuracy & Resolution
Parameter
Value
Resolution
Pressure
±1% of full scale
0.01 MPa (1 psi)
Pull Rate
±(2.5% + 0.3 s)
0.01 MPa/s (1 psi/s)
Operating Range by Dolly
Dolly Diameter
Operating Range
Pull Rate Range
Actuator Ht.
10mm (0.39")
8 – 100 MPa (1200 – 14400 psi)
0.4 – 5.6 MPa/s (58 – 812 psi/s)
85 mm
14.2mm (0.56")
4 – 50 MPa (600 – 7200 psi)
0.2 – 2.8 MPa/s (29 – 403 psi/s)
85 mm
20mm (0.76")
2 – 25 MPa (300 – 3600 psi)
0.1 – 1.4 MPa/s (15 – 203 psi/s)
85 mm
50mm (1.96")
0.3 – 4 MPa (50 – 580 psi)
0.02 – 0.22 MPa/s (2 – 32 psi/s)
110 mm
Physical & Power
Gauge Dimensions
260 × 100 × 66 mm (6.3 × 3.9 × 2.6")
Instrument Weight
2.9 kg (6.4 lb) — 3.1 kg with 50mm actuator
Kit Weight
20mm Kit: 6.1 kg (13.5 lb) · 50mm Kit: 7.3 kg (16.1 lb)
Power Supply
8 × AA batteries (16 rechargeable NiMH supplied with charger) or AC mains power (Model T only)
Battery Life
~200 pulls per charge up to 25 MPa (3600 psi) at 1 MPa/s (150 psi/s) · recharge time < 5 hours
Warranty
2-year gauge warranty
Packing List
Elcometer 510 gauge, dollies & standard skirt, dolly cutter & handle/arbor, Araldite two-part epoxy adhesive (2 × 15ml), abrasive pad, shoulder harness, carry case, 16 × AA NiMH batteries & charger, mains power supply3, ElcoMaster® & USB cable, calibration certificate and operating instructions
1 Fully adjustable (Advanced mode) pull rates available on Model T only; range varies by dolly size, from 0.02 MPa/s (50mm) up to 5.6 MPa/s (10mm).
2 iOS compatibility subject to device and OS version. Check ElcoMaster® system requirements.
3 Mains power supply supplied with Model T only.
Standards shown in the Compliance section may include some that are superseded but still recognised in certain industries. Confirm against your contract or ITP.
Documentation
Product Resources
Current documentation for the Elcometer 510 Automatic Pull-Off Adhesion
Tester — instruction manual and Model S and Model T user guides.
