Digital Coating Thickness Gauge | Elcometer 456 Separate

Ferrous Metal Coating Thickness Gauge, Separate (Requires Probe) | Model B | Elcometer 456

For the full list of Model B features, visit the Elcometer 456 Model Specifications page.

Note: The Elcometer 456 Separate gauges require the use of a compatible probe - Sold Separately.

Non-Ferrous Metal Coating Thickness Gauge, Separate (Requires Probe) | Model B | Elcometer 456

The all new Elcometer 456 Basic Non-Ferrous Metal Substrate Coating Thickness Gauge can be used with any new Elcometer 456 Non-Ferrous Substrate Probe or PINIP.

Resolution adjusts automatically to meet probe specification.

For the full list of Model B features, visit the Elcometer 456 Model Specifications page.

Note: The Elcometer 456 Separate gauges require the use of a compatible probe - Sold Separately.

Ferrous/Non-Ferrous Coating Thickness Gauge, Separate (Requires Probe) | Model B | Elcometer 456

The all new Elcometer 456 Basic Ferrous and Non-Ferrous metal substrate coating thickness gauge can be used with any scale range of Elcometer 456 separate or PINIP probes.

For the full list of Model B features, visit the Elcometer 456 Model Specifications page.

Note: The Elcometer 456 Separate gauges require the use of a compatible probe - Sold Separately.

Ferrous Metal Coating Thickness Gauge, Separate (Requires Probe) | Model S | Elcometer 456

The all new Elcometer 456 Standard Ferrous metal substrate coating thickness gauge can be used with any Ferrous Substrate Probe or PINIP.

This model stores up to 1,500 readings in a single batch file, and readings may be sent directly to a computer via Bluetooth or USB.

For the full list of Model S features, visit the Elcometer 456 Model Specifications page.

Note: The Elcometer 456 Separate gauges require the use of a compatible probe - Sold Separately.

Non-Ferrous Metal Coating Thickness Gauge, Separate (Requires Probe) | Model S | Elcometer 456

The all new Elcometer 456 Standard Non-Ferrous Metal Substrate Coating Thickness Gauge can be used with any Non-Ferrous Substrate Probe or PINIP.

This model stores up to 1,500 readings in a single batch file, and readings may be sent directly to a computer via Bluetooth or USB.

For the full list of Model S features, visit the Elcometer 456 Model Specifications page.

Note: The Elcometer 456 Separate gauges require the use of a compatible probe - Sold Separately.

Ferrous/Non-Ferrous Coating Thickness Gauge, Separate (Requires Probe) | Model S | Elcometer 456

The all new Elcometer 456 Standard Ferrous and Non-Ferrous metal substrate coating thickness gauge can be used with any Ferrous, Non-Ferrous or FNF Substrate Probe.

This model stores up to 1,500 readings in a single batch file, and readings may be sent directly to a computer via Bluetooth or USB.

For the full list of Model S features, visit the Elcometer 456 Model Specifications page.

Note: The Elcometer 456 Separate gauges require the use of a compatible probe - Sold Separately.

Ferrous Metal Coating Thickness Gauge, Separate (Requires Probe) | Model T | Elcometer 456

The all new Elcometer 456 Top Ferrous Metal Substrate Coating Thickness Gauge can be used with any Ferrous Substrate Probe or PINIP.

This model includes memory that stores up to 150,000 readings and up to 2,500 batch files; each are capable of storing a distinct calibration.

Batch types include: normal, counted average, IMO PSPC, and the readings may be sent directly to your computer via Bluetooth or USB.

For the full list of Model T features, visit the Elcometer 456 Model Specifications page.

Note: The Elcometer 456 Separate gauges require the use of a compatible probe - Sold Separately.

Non-Ferrous Metal Coating Thickness Gauge, Separate (Requires Probe) | Model T | Elcometer 456

The all new Elcometer 456 Top Non-Ferrous Metal Substrate Coating Thickness Gauge can be used with any Non-Ferrous Substrate Probe or PINIP.

This model includes memory that stores up to 150,000 readings and up to 2,500 batch files; each are capable of storing a distinct calibration.

Batch types include: normal, counted average, IMO PSPC, and the readings may be sent directly to your computer via Bluetooth or USB.

For the full list of Model T features, visit the Elcometer 456 Model Specifications page.

Note: The Elcometer 456 Separate gauges require the use of a compatible probe - Sold Separately.

Ferrous/Non-Ferrous Coating Thickness Gauge, Separate (Requires Probe) | Model T | Elcometer 456

The all new Elcometer 456 Top Ferrous and Non-Ferrous metal substrate coating thickness gauge can be used with any Elcometer 456 Ferrous, Non-Ferrous or Dual FNF Substrate Probe or PINIP.

This model includes memory that stores up to 150,000 readings and up to 2,500 batch files; each are capable of storing a distinct calibration.

Batch types include: normal, counted average, IMO PSPC, and the readings may be sent directly to your computer via Bluetooth or USB.

For the full list of Model T features, visit the Elcometer 456 Model Specifications page.

Note: The Elcometer 456 Separate gauges require the use of a compatible probe - Sold Separately.

Bench Top Stand for Elcometer 456 and 224 Separate Gauges

Package of Ten (10) Self-Adhesive Screen Protectors | Elcometer 456 and 224

Self Adhesive Custom Sized Screen Protectors for Elcometer 456 and 224 Gauges, Ten: Protects screens from damage due to overspray and blast media.

USB Cable

Straight Ferrous Substrate Probe | Scale 1 | Elcometer 456

Designed to work with any of our Ferrous or Dual FNF Elcometer 456 Separate Gauges.

This straight probe is specifically designed to measure the coating on both flat and curved surfaces.

All Elcometer probes are supplied with a Test Certificate and a set of calibration foils appropriate to the scale range of the probe.

Specifications:

• Range: 0-60 mils (0-1500µm)
• Accuracy*: ±1-3% or ±0.1 mil (±2.5µm)
• Resolution: 0.01 mil: 0-5 mils; 0.1mil: 5-60 mils (0.1µm: 0-100µm; 1µm: 100-1500µm)
• Minimum convex surface radius 4mm (0.16")
• Minimum concave surface radius 25mm (0.98")
• Minimum headroom 85mm (3.35")
• Minimum sample diameter 4mm (0.16")

Mini Straight Ferrous Probe | Scale 0.5 | Elcometer 456

The all New Elcometer 456 Mini Straight Ferrous Probe is designed to work with our Elcometer 456 Separate Gauges.

Ideal for measuring coatings on edges, narrow pipes, wire, or small surface areas.

Specifications:

• Length 45mm
• Range: 0-20 mils (0-500µm)
• Accuracy*: ±1-3% or ±0.1 mil (±2.5µm)
• Resolution: 0.01 mil: 0-5 mils; 0.1 mils: 5-20 mils (0.1µm: 0-100µm; 1µm: 100-500µm)
• Minimum convex surface radius - 1.9mm (0.07")
• Minimum concave surface radius - 6.5mm (0.26")
• Minimum headroom - 6mm (0.24")
• Minimum sample diameter: 3mm (0.12")

*Whichever is greater

Mini Straight Non-Ferrous Substrate Probe | Scale 0.5 | Elcometer 456

The all New Elcometer 456 Mini Straight Non-Ferrous Probe is designed to work with our Elcometer 456 Non- Ferrous and Ferrous/Non-Ferrous Separate Gauges.

Ideal for measuring coatings on edges, narrow pipes, wire, or small surface areas.

Specifications:

• Length 45mm
• Range: 0-20 mils (0-500µm)
• Accuracy*: ±1-3% or ±0.1 mil (±2.5µm)
• Resolution: 0.01 mil: 0-5 mils; 0.1 mils: 5-20 mils (0.1µm: 0-100µm; 1µm: 100-500µm)
• Minimum convex surface radius - 6mm (0.24")
• Minimum concave surface radius - 8.5mm (0.33")
• Minimum headroom - 6mm (0.24")
• Minimum sample diameter: 4mm (0.16")

*Whichever is greater

Mini 90° Ferrous Substrate Probe | Scale 0.5 - 45mm | Elcometer 456

The all New Elcometer 456 Mini 90 Degree Ferrous Probe is designed to work with our Elcometer 456 Separate Gauges.

Ideal for edges, narrow pipes and small surfaces areas.

Specifications:

• Length 45mm
• Range: 0-20 mils (0-500µm)
• Accuracy*: ±1-3% or ±0.1 mil (±2.5µm)
• Resolution: 0.01 mil: 0-5 mils; 0.1 mils: 5-20 mils (0.1µm: 0-100µm; 1µm: 100-500µm)
• Minimum convex surface radius - 1.9mm (0.07")
• Minimum concave surface radius - 6.5mm (0.26")
• Minimum headroom - 16mm (0.63") Width: 7mm (0.28")
• Minimum sample diameter: 3mm (0.12")

*Whichever is greater

Mini 90° Non-Ferrous Substrate Probe | Scale 0.5 | 45mm | Elcometer 456

The Elcometer 456 Mini 90 Degree Non-Ferrous Probe is designed to work with our Elcometer 456 Separate Gauges.

Ideal for edges, narrow pipes and small surfaces areas.

Specifications:

• Length 45mm
• Range: 0-20 mils (0-500µm)
• Accuracy*: ±1-3% or ±0.1 mil (±2.5µm)
• Resolution: 0.01 mil: 0-5 mils; 0.1 mils: 5-20 mils (0.1µm: 0-100µm; 1µm: 100-500µm)
• Minimum convex surface radius - 6mm (0.24")
• Minimum concave surface radius - 8.5mm (0.33")
• Minimum headroom - 16mm (0.63") Width: 7mm (0.28")
• Minimum sample diameter: 4mm (0.16")

*Whichever is greater

Mini 45° Ferrous Substrate Probe | Scale 0.5 - 45mm | Elcometer 456

The all New Elcometer 456 Mini 45 Degree Ferrous Probe is designed to work with our Elcometer 456 Separate Gauges.

Angled measurement head and long probe shaft is ideal for measuring difficult to access areas in bore holes or cylinders.

Specifications:

• Length 45mm
• Range: 0-20 mils (0-500µm)
• Accuracy*: ±1-3% or ±0.1 mil (±2.5µm)
• Resolution: 0.01 mil: 0-5 mils; 0.1 mils: 5-20 mils (0.1µm: 0-100µm; 1µm: 100-500µm)
• Minimum convex surface radius - 1.9mm (0.07")
• Minimum concave surface radius - 6.5mm (0.26")
• Minimum headroom - 16mm (0.63") Width: 7mm (0.28")
• Minimum sample diameter: 3mm (0.12")

*Whichever is greater

Mini 90° Ferrous Substrate Probe | Scale 0.5 - 150mm | Elcometer 456

The all New Elcometer 456 Mini 90 Degree Ferrous Probe is designed to work with our Elcometer 456 Separate Gauges.

Right angled probe with mini measuring head.

Ideal for measuring the walls of hard to reach areas of pipes or boreholes.

Specifications:

• Length 150mm (5.90")
• Range: 0-20 mils (0-500µm)
• Accuracy*: ±1-3% or ±0.1 mil (±2.5µm)
• Resolution: 0.01 mil: 0-5 mils; 0.1 mils: 5-20 mils (0.1µm: 0-100µm; 1µm: 100-500µm)
• Minimum convex surface radius - 1.9mm (0.07")
• Minimum concave surface radius - 6.5mm (0.26")
• Minimum headroom - 16mm (0.63") Width: 7mm (0.28")
• Minimum sample diameter: 3mm (0.12")

*Whichever is greater

Mini 90° Non-Ferrous Substrate Probe | Scale 0.5 | 150mm | Elcometer 456

The all New Elcometer 456 Mini 90 Degree Non-Ferrous Probe is designed to work with our Elcometer 456 Separate Gauges.

Right angled probe with mini measuring head.

Ideal for measuring the walls of hard to reach areas of pipes or boreholes.

Specifications:

• Length 150mm (5.90")
• Range: 0-20 mils (0-500µm)
• Accuracy*: ±1-3% or ±0.1 mil (±2.5µm)
• Resolution: 0.01 mil: 0-5 mils; 0.1 mils: 5-20 mils (0.1µm: 0-100µm; 1µm: 100-500µm)
• Minimum convex surface radius - 6mm (0.24")
• Minimum concave surface radius - 8.5mm (0.33")
• Minimum headroom - 16mm (0.63") Width: 7mm (0.28")
• Minimum sample diameter: 4mm (0.16")

*Whichever is greater

Mini 90° Ferrous Substrate Probe | Scale 0.5 - 300mm | Elcometer 456

The all New Elcometer 456 Mini 90 Degree Ferrous Probe is designed to work with our Elcometer 456 Separate Gauges.

Right angled probe with mini measuring head.

Ideal for measuring the walls of hard to reach areas of pipes or boreholes.

Specifications:

• Length 300mm (11.8")
• Range: 0-20 mils (0-500µm)
• Accuracy*: ±1-3% or ±0.1 mil (±2.5µm)
• Resolution: 0.01 mil: 0-5 mils; 0.1 mils: 5-20 mils (0.1µm: 0-100µm; 1µm: 100-500µm)
• Minimum convex surface radius - 1.9mm (0.07")
• Minimum concave surface radius - 6.5mm (0.26")
• Minimum headroom - 16mm (0.63") Width: 7mm (0.28")
• Minimum sample diameter: 3mm (0.12")

*Whichever is greater

Mini 90° Non-Ferrous Substrate Probe | Scale 0.5 | 400mm | Elcometer 456

The all New Elcometer 456 Mini 90 Degree Non-Ferrous Probe is designed to work with our Elcometer 456 Separate Gauges.

Right angled probe with mini measuring head.

Ideal for measuring the walls of hard to reach areas of pipes or boreholes.

Specifications:

• Length 400mm (15.7")
• Range: 0-20 mils (0-500µm)
• Accuracy*: ±1-3% or ±0.1 mil (±2.5µm)
• Resolution: 0.01 mil: 0-5 mils; 0.1 mils: 5-20 mils (0.1µm: 0-100µm; 1µm: 100-500µm)
• Minimum convex surface radius - 6mm (0.24")
• Minimum concave surface radius - 8.5mm (0.33")
• Minimum headroom - 16mm (0.63") Width: 7mm (0.28")
• Minimum sample diameter: 4mm (0.16")

*Whichever is greater

Mini 90° Non-Ferrous Graphite Probe | Scale 0.5 | 150mm | Elcometer 456

The all New Elcometer 456 Mini 90 Degree Non-Ferrous Graphite Probe is designed to work with our Elcometer 456 Separate Gauges.

Available in three different probe lengths, these non-ferrous 90° mini probes are programmed using a graphite block as the substrate.

This has a significantly different linearization to the usual N probes, which are set up for aluminium and copper, making them ideal for applications involving non-conductive coatings on graphite substrates typically used in aerospace and high technology marine industries.

Specifications:

• Length 150mm (5.90")
• Range: 0-20 mils (0-500µm)
• Accuracy*: ±1-3% or ±0.1 mil (±2.5µm)
• Resolution: 0.01 mil: 0-5 mils; 0.1 mils: 5-20 mils (0.1µm: 0-100µm; 1µm: 100-500µm)
• Minimum convex surface radius - 6mm (0.24")
• Minimum concave surface radius - 8.5mm (0.33")
• Minimum headroom - 16mm (0.63") Width: 7mm (0.28")
• Minimum sample diameter: 4mm (0.16")

*Whichever is greater

Mini 90° Non-Ferrous Graphite Probe | Scale 0.5 | 400mm | Elcometer 456

The all New Elcometer 456 Mini 90 Degree Non-Ferrous Graphite Probe is designed to work with our Elcometer 456 Separate Gauges.

Available in three different probe lengths, these non-ferrous 90° mini probes are programmed using a graphite block as the substrate.

This has a significantly different linearization to the usual N probes, which are set up for aluminium and copper, making them ideal for applications involving non-conductive coatings on graphite substrates typically used in aerospace and high technology marine industries.

Specifications:

• Length 400mm (15.70")
• Range: 0-20 mils (0-500µm)
• Accuracy*: ±1-3% or ±0.1 mil (±2.5µm)
• Resolution: 0.01 mil: 0-5 mils; 0.1 mils: 5-20 mils (0.1µm: 0-100µm; 1µm: 100-500µm)
• Minimum convex surface radius - 6mm (0.24")
• Minimum concave surface radius - 8.5mm (0.33")
• Minimum headroom - 16mm (0.63") Width: 7mm (0.28")
• Minimum sample diameter: 4mm (0.16")

*Whichever is greater

Ultra Scan Probe for Ferrous Substrates | Range: 0-60mils / 0-1500µm | Elcometer 456

Designed to work with any of our Top Ferrous or Top Dual FNF Elcometer 456 Separate Gauges.

Featuring a highly durable 'snap on' replaceable probe cap, the Elcometer 456 Ultra/Scan Probe allows users to take individual readings or rapidly scan large surface areas - without damaging the probe or the coating.

With a reading rate in excess of 140 readings per minute the Auto Repeat Mode can significantly speed up the inspection of large coated areas.

When the Ultra/Scan Probe is connected to the Elcometer 456 Model T with Auto Repeat Mode selected, SSPC PA2 (or similar test methods) can be completed more than 40% faster.

Specifications:

• Range: 0-60 mils (0-1500µm)
• Accuracy: ±1-3% or ±0.1 mil (±2.5µm)
• Resolution: 0-60 mils (1µm: 0-1500µm
• Minimum headroom: 85mm (3.50")
• Minimum sample diameter: 5mm (0.59")

Ultra Scan Probe for Ferrous Metal Substrates | Range: 0-200mils / 0- 5mm | Elcometer 456

Designed to work with any of our Top Ferrous or Top Dual FNF Elcometer 456 Separate Gauges.

Featuring a highly durable 'snap on' replaceable probe cap, the Elcometer 456 Ultra/Scan Probe allows users to take individual readings or rapidly scan large surface areas - without damaging the probe or the coating.

With a reading rate in excess of 140 readings per minute the Auto Repeat Mode can significantly speed up the inspection of large coated areas.

When the Ultra/Scan Probe is connected to the Elcometer 456 Model T with Auto Repeat Mode selected, SSPC PA2 (or similar test methods) can be completed more than 40% faster.

Specifications:

• Range: 0-200 mils (0-5mm)
• Accuracy: ±1-3% or ±1 mil (±.02mm)
• Resolution: 0.1mil: 0-50mils; 1mil: 50-200mils (1µm: 0-1mm; 10µm: 1-5mm)
• Minimum headroom: 85mm (3.50")
• Minimum sample diameter: 5mm (0.59")

Ultra Scan Probe for Ferrous and Non-Ferrous Metal Substrates | Elcometer 456

Designed to work with any of our Elcometer 456 FNF Top Separate Gauges.

Featuring a highly durable 'snap on' replaceable probe cap, the Elcometer 456 Ultra/Scan Probe allows users to take individual readings or rapidly scan large surface areas - without damaging the probe or the coating.

With a reading rate in excess of 140 readings per minute the Auto Repeat Mode can significantly speed up the inspection of large coated areas.

When the Ultra/Scan Probe is connected to the Elcometer 456 Model T with Auto Repeat Mode selected, SSPC PA2 (or similar test methods) can be completed more than 40% faster.

Specifications:

• Range: 0-60 mils (0-1500µm)
• Accuracy: ±1-3% or ±0.1 mil (±2.5µm)
• Resolution: 0-60 mils (1µm: 0-1500µm
• Minimum headroom: 85mm (3.50")
• Minimum sample diameter: 5mm (0.59")

Pack of Three (3) Replacement Ultra Scan Probe End Caps | Elcometer 456

Elcometer 456 Replacement Ultra/Scan Probe End Caps (3 per pack): Highly durable and precision milled 'snap on' replaceable probe cap allows users to take individual readings or rapidly scan large surface areas - without damaging the probe or the coating.

Only works with Elcometer Ultra Scan probes.

Hi-Temp (480°F) Ferrous Substrate Plug In Integral Probe (PINIP™) | Elcometer 456

Designed to work with any of our Ferrous or Dual FNF Elcometer 456 Separate Gauges.

Designed to measure coatings at temperatures up 480°F.

Probe attaches to a separate gauge to give the performance and profile of an integral probe gauge.

Includes two calibration foils that allow calibration over the work piece when at high temperature thereby increasing accuracy by calibrating to the specific magnetic properties of the substrate at temperature.

For higher resolution & accuracy on thin coatings Scale 2 gauges can be switched to the Scale 1 mode measurement performance.

Specifications:

• Range: 0-200 mils (0-5mm)
• Accuracy: ±1-3% or ±1.0 mil (±20µm)
• Resolution: 0.1 mil: 0-50 mils; 1mil: 50-200 mils (1µm: 0-1mm; 10µm: 1-5mm)
• Minimum convex surface radius - 4mm (0.16")
• Minimum concave surface radius - 60mm (2.36")
• Minimum headroom - 174mm (6.85")
• Minimum sample diameter: - 8mm (0.32")

Plug In Integral Probe (PINIP™) Non-Ferrous Substrate Probe | Scale 2 | Elcometer 456

Designed to work with any of our Non-Ferrous or Dual FNF Elcometer 456 Separate Gauges.

For higher resolution & accuracy on thin coatings Scale 2 gauges can be switched to the Scale 1 mode measurement performance.

Probe attaches to a separate gage to give it the performance and profile of an integral probe gauge.

Specifications:

• Range: 0-200 mils (0-5mm)
• Accuracy: ±1-3% or ±1.0 mil (±20µm)
• Resolution: 0.1 mil: 0-50 mils; 1mil: 50-200 mils (1µm: 0-1mm; 10µm: 1-5mm)
• Minimum convex surface radius - 100mm (3.97")
• Minimum concave surface radius - 150mm (5.90")
• Minimum headroom - 185mm (7.28")
• Minimum sample diameter: - 14mm (0.55")

Straight Ferrous Substrate Probe | Scale 3 | Elcometer 456

Designed to work with any of our Ferrous or Dual FNF Elcometer 456 Separate Gauges.

Supplied with an Elcometer test certificate and a set of calibration foils.

Foil sets are appropriate to the scale range.

Specifications:

• Range: 0-500 mils (0-13mm)
• Accuracy*: ±1-3% or ±2.0 mil (±50µm)
• Resolution: 0.1 mil: 0-100 mils; 1mil: 100-500 mils (1µm: 0-2mm; 10µm: 2-13mm)
• Minimum convex surface radius - 15mm (0.59")
• Minimum concave surface radius - 40mm (1.57")
• Minimum headroom - 102mm (4.02")
• Minimum sample diameter: - 14mm (0.55")

Ferrous Substrate Plug In Integral Probe (PINIP™) | Scale 3 | Elcometer 456

Designed to work with any of our Ferrous or Dual FNF Elcometer 456 Separate Gauges.

Supplied with an Elcometer test certificate and a set of calibration foils.

Foil sets are appropriate to the scale range.

Specifications:

• Range: 0-500 mils (0-13mm)
• Accuracy: ±1-3% or ±2.0 mil (±50µm)
• Resolution: 0.1 mil: 0-100 mils; 1mil: 100-500 mils (1µm: 0-2mm; 10µm: 2-13mm)
• Minimum convex surface radius - 15mm (0.59")
• Minimum concave surface radius - 45mm (1.77")
• Minimum headroom - 184mm (7.24")
• Minimum sample diameter: - 14mm (0.55")

Straight Ferrous Substrate Probe | Scale 6 | Elcometer 456

Designed to work with any of our Ferrous or Dual FNF Elcometer 456 Separate Gauges.

Ideal for measuring thick coatings over ferrous metal substrates. Including, but not limited to: pipe wrap, fireproofing, and polyurea.

Specifications:

• Range: F - 0-980 mils (0-25mm) / N - 0-1200 mils (0-30mm)
• Accuracy*: ±1-3% or ±4.0 mil (±100µm)
• Resolution: 1.0 mil: 0-100 mils; 10 mils: 100-1200 mils (10µm: 0-2mm; 100µm: 2-30mm)
• Minimum convex surface radius - 35mm (1.40")
• Minimum concave surface radius - 170mm (6.70")
• Minimum headroom - 150mm (5.90")
• Minimum sample diameter: 51 x 51mm² (2 x 2 sq. inch)

Straight Non-Ferrous Substrate Probe | Scale 1 | Elcometer 456

Designed to work with any of our Non-Ferrous or Dual FNF Elcometer 456 Separate Gauges.

This straight probe can be used to measure the coating on both flat and curved surfaces.

Specifications:

• Range: 0-60 mils (0-1500µm)
• Accuracy*: ±1-3% or ±0.1 mil (±2.5µm)
• Resolution: 0.01 mil: 0-5 mils; 0.1mil: 5-60 mils (0.1µm: 0-100µm; 1µm: 100-1500µm)
• Minimum convex surface radius 10mm (0.39")
• Minimum concave surface radius 10mm (0.39")
• Minimum headroom 85mm (3.35")
• Minimum sample diameter 4mm (0.16")

Straight Dual Ferrous/Non-Ferrous (FNF) Substrate Probe | Scale 1 | Elcometer 456

Designed to work with any of our Elcometer 456 Separate Gauges.

This straight probe can be used to measure the coating on both flat and curved surfaces.

Specifications:

• Range: 0-60 mils (0-1500µm)
• Accuracy*: ±1-3% or ±0.1 mil (±2.5µm)
• Resolution: 0.01 mil: 0-5 mils; 0.1mil: 5-60 mils (0.1µm: 0-100µm; 1µm: 100-1500µm)
• Minimum convex surface radius 10mm (0.39")
  • F Mode: 4mm (0.16")
  • N Mode: 26mm (1.02")
• Minimum concave surface radius 12.5mm (0.49")
• Minimum headroom 88mm (3.46")
• Minimum sample diameter 4mm (0.16")
  • F Mode: 4mm (0.16")
  • N Mode: 6mm (0.24")

Right Angle Ferrous Substrate Probe | Scale 1 | Elcometer 456

Designed to work with any of our Ferrous or Dual FNF Elcometer 456 Separate Gauges.

For taking readings in areas with restricted access or head clearance.

Specifications:

• Range: 0-60 mils (0-1500µm)
• Accuracy: ±1-3% or ±0.1 mil (±2.5µm)
• Resolution: 0.01 mil: 0-5 mils; 0.1mil: 5-60 mils (0.1µm: 0-100µm; 1µm: 100-1500µm)
• Minimum convex surface radius 4mm (0.16")
• Minimum concave surface radius 25mm (0.98")
• Minimum headroom 28mm (1.10")
• Minimum sample diameter 4mm (0.16")

Right Angle Dual Ferrous/Non-Ferrous (FNF) Substrate Probe | Scale 1 | Elcometer 456

Designed to work with any of our Elcometer 456 Separate Gauges.

Industrially hardened probe housing designed for taking readings where access is restricted.

Automatic substrate detection.

Specifications:

• Range: 0-60 mils (0-1500µm)
• Accuracy: ±1-3% or ±0.1 mil (±2.5µm)
• Resolution: 0.01 mil: 0-5 mils; 0.1mil: 5-60 mils (0.1µm: 0-100µm; 1µm: 100-1500µm)
• Minimum convex surface radius 10mm (0.39")
  • F Mode: 4mm (0.16")
  • N Mode: 26mm (1.02")
• Minimum concave surface radius 12.5mm (0.49")
• Minimum headroom 38mm (1.50")
• Minimum sample diameter 4mm (0.16")
  • F Mode: 4mm (0.16")
  • N Mode: 6mm (0.24")

Mini 90° Ferrous Substrate Probe | Scale 1 - 45mm | Elcometer 456

Designed to work with any of our Ferrous or Dual FNF Elcometer 456 Separate Gauges.

Ideal for measuring I beam edges, walls of hard to reach areas, as well as walls of pipes or boreholes.

Specifications:

• 45mm
• Range: 0-60 mils (0-1500µm)
• Accuracy: ±1-3% or ±0.1 mil (±2.5µm)
• Resolution: 0.01 mil: 0-5 mils; 0.1mil: 5-20 mils (0.1µm: 0-100µm; 1µm: 100-500µm)
• Minimum convex surface radius 3.0mm (0.12")
• Minimum concave surface radius 6.5mm (0.26")
• Minimum headroom 16mm (0.63") - Width: 7mm (0.28")
• Minimum sample diameter 4mm (0.16")

Mini 90° Non-Ferrous Substrate Probe | Scale 1 | 45mm | Elcometer 456

Designed to work with any of our Non-Ferrous or Dual FNF Elcometer 456 Separate Gauges.

Ideal for measuring I beam edges, walls of hard to reach areas, as well as walls of pipes or boreholes.

Specifications:

• 45mm
• Range: 0-60 mils (0-1500µm)
• Accuracy: ±1-3% or ±0.1 mil (±2.5µm)
• Resolution: 0.01 mil: 0-5 mils; 0.1mil: 5-20 mils (0.1µm: 0-100µm; 1µm: 100-500µm)
• Minimum convex surface radius 10.0mm (0.39")
• Minimum concave surface radius 8.5mm (0.33")
• Minimum headroom 16mm (0.63") - Width: 7mm (0.28"))
• Minimum sample diameter 4mm (0.16")

Mini 90° Non-Ferrous Substrate Probe | Scale 1 | 150mm | Elcometer 456

Designed to work with any of our Non-Ferrous or Dual FNF Elcometer 456 Separate Gauges.

Ideal for measuring I beam edges, walls of hard to reach areas, as well as walls of pipes or boreholes.

Specifications:

• 150mm
• Range: 0-60 mils (0-1500µm)
• Accuracy: ±1-3% or ±0.1 mil (±2.5µm)
• Resolution: 0.01 mil: 0-5 mils; 0.1mil: 5-20 mils (0.1µm: 0-100µm; 1µm: 100-500µm)
• Minimum convex surface radius 10.0mm (0.39")
• Minimum concave surface radius 8.5mm (0.33")
• Minimum headroom 16mm (0.63") - Width: 7mm (0.28"))
• Minimum sample diameter 4mm (0.16")

Mini 90° Non-Ferrous Substrate Probe | Scale 1 | 400mm | Elcometer 456

Designed to work with any of our Non-Ferrous or Dual FNF Elcometer 456 Separate Gauges.

Ideal for measuring I beam edges, walls of hard to reach areas, as well as walls of pipes or boreholes.

Specifications:

• 400mm
• Range: 0-60 mils (0-1500µm)
• Accuracy: ±1-3% or ±0.1 mil (±2.5µm)
• Resolution: 0.01 mil: 0-5 mils; 0.1mil: 5-20 mils (0.1µm: 0-100µm; 1µm: 100-500µm)
• Minimum convex surface radius 10.0mm (0.39")
• Minimum concave surface radius 8.5mm (0.33")
• Minimum headroom 16mm (0.63") - Width: 7mm (0.28")
• Minimum sample diameter 4mm (0.16")

Straight Sealed-Tip Ferrous Substrate Probe | Scale 1 | Elcometer 456

Designed to work with any of our Ferrous or Dual FNF Elcometer 456 Separate Gauges.

Sealed tip engineered for use in high humidity environments or areas where distillates or chemicals are present.

This straight probe can be used to measure the coating on both flat and curved surfaces.

Specifications:

• Range: 0-60 mils (0-1500µm)
• Accuracy*: ±1-3% or ±0.1 mil (±2.5µm)
• Resolution: 0.01 mil: 0-5 mils; 0.1mil: 5-60 mils (0.1µm: 0-100µm; 1µm: 100-1500µm)
• Minimum convex surface radius 4mm (0.16")
• Minimum concave surface radius 25.0mm (0.98")
• Minimum headroom 85mm (3.35")
• Minimum sample diameter 4mm (0.16")

Mini 90° Sealed-Tip Ferrous Substrate Probe | Scale 1 - 45mm | Elcometer 456

Designed to work with any of our Ferrous or Dual FNF Elcometer 456 Separate Gauges.

Sealed tip engineered for use in high humidity environments or areas where distillates or chemicals are present.

Right angled probe with mini measuring head.

Ideal for measuring I beam edges, walls of hard to reach areas, and edges of pipes or boreholes.

Specifications:

• 45mm (1.77")
• Range: 0-60 mils (0-1500µm)
• Accuracy: ±1-3% or ±0.1 mil (±2.5µm)
• Resolution: 0.01 mil: 0-5 mils; 0.1mil: 5-60 mils (0.1µm: 0-100µm; 1µm: 100-1500µm)
• Minimum convex surface radius 3mm (0.12")
• Minimum concave surface radius 6.5mm (0.26")
• Minimum headroom 16mm (0.63") - Width: 7mm (0.28")
• Minimum sample diameter 4mm (0.16")

Non-Ferrous Substrate Plug In Integral Probe (PINIP™) | Scale 1 | Elcometer 456

Designed to work with any of our Non-Ferrous or Dual FNF Elcometer 456 Separate Gauges.

Probe attaches to a separate gauge to give it the performance and profile of an integral probe gauge.

Specifications:

• Range: 0-60 mils (0-1500µm)
• Accuracy*: ±1-3% or ±0.1 mil (±2.5µm)
• Resolution: 0.01 mil: 0-5 mils; 0.1mil: 5-60 mils (0.1µm: 0-100µm; 1µm: 100-1500µm)
• Minimum convex surface radius 10mm (0.39")
• Minimum concave surface radius 50mm (1.97")
• Minimum headroom 180mm (7.09")
• Minimum sample diameter 4mm (0.16")

Ferrous Substrate Plug In Integral Probe (PINIP™) | Scale 1 | Elcometer 456

Designed to work with any of our Ferrous or Dual FNF Elcometer 456 Separate Gauges.

Probe attaches to a separate gauge to give it the performance and profile of an integral probe gauge.

Specifications:

• Range: 0-60 mils (0-1500µm)
• Accuracy*: ±1-3% or ±0.1 mil (±2.5µm)
• Resolution: 0.01 mil: 0-5 mils; 0.1mil: 5-60 mils (0.1µm: 0-100µm; 1µm: 100-1500µm)
• Minimum convex surface radius 4mm (0.16")
• Minimum concave surface radius 60mm (2.36")
• Minimum headroom 170mm (6.69")
• Minimum sample diameter 4mm (0.16")

Dual Ferrous/Non-Ferrous (FNF) Substrate Plug In Integral Probe (PINIP™) | Scale 1 | Elcometer 456

Designed to work with any of our Elcometer 456 Separate Gauges.

Probe attaches to a separate gauge to give it the performance and profile of an integral probe gauge.

Specifications:

• Range: 0-60 mils (0-1500µm)
• Accuracy: ±1-3% or ±0.1 mil (±2.5µm)
• Resolution: 0.01 mil: 0-5 mils; 0.1mil: 5-60 mils (0.1µm: 0-100µm; 1µm: 100-1500µm)
• Minimum convex surface radius F Mode: 4mm (0.16") N Mode: 26mm (1.02")
• Minimum concave surface radius 65mm (2.56")
• Minimum headroom 180mm (7.09")
• Minimum sample diameter F Mode: 4mm (0.16") N Mode: 6mm (0.24")

Straight Ferrous Substrate Probe | Scale 2 | Elcometer 456

Designed to work with any of our Ferrous or Dual FNF Elcometer 456 Separate Gauges.

For higher resolution & accuracy on thin coatings Scale 2 gauges can be switched to the Scale 1 mode measurement performance.

Specifications:

• Range: 0-200 mils (0-5mm)
• Accuracy*: ±1-3% or ±1.0 mil (±20µm)
• Resolution: 0.1 mil: 0-50 mils; 1mil: 50-200 mils (1µm: 0-1mm; 10µm: 1-5mm)
• Minimum convex surface radius 4mm (0.16")
• Minimum concave surface radius 25mm (0.98")
• Minimum headroom 89mm (3.50")
• Minimum sample diameter F Mode: 8mm (0.32")

Straight Non-Ferrous Substrate Probe | Scale 2 | Elcometer 456

Designed to work with any of our Non-Ferrous or Dual FNF Elcometer 456 Separate Gauges.

For higher resolution & accuracy on thin coatings Scale 2 gauges can be switched to the Scale 1 mode measurement performance.

Specifications:

• Range: 0-200 mils (0-5mm)
• Accuracy*: ±1-3% or ±1.0 mil (±20µm)
• Resolution: 0.1 mil: 0-50 mils; 1mil: 50-200 mils (1µm: 0-1mm; 10µm: 1-5mm)
• Minimum convex surface radius 100mm (3.97")
• Minimum concave surface radius 150mm (5.90")
• Minimum headroom 88mm (3.46")
• Minimum sample diameter: 14mm (0.55")

Straight Waterproof Ferrous Substrate Probe | Scale 2 | 3' Cable | Elcometer 456

Designed to work with any of our Ferrous or Dual FNF Elcometer 456 Separate Gauges.

For higher resolution & accuracy on thin coatings Scale 2 gauges can be switched to the Scale 1 mode measurement performance.

Sealed for use under water at depth.

Large diameter probe sleeve for use with diving gloves.

Suitable on both flat and curved surfaces.

Specifications:

• 3 foot cable
• Range: 0-200 mils (0-5mm)
• Accuracy: ±1-3% or ±1.0 mil (±20µm)
• Resolution: 0.1 mil: 0-50 mils; 1mil: 50-200 mils (1µm: 0-1mm; 10µm: 1-5mm)
• Minimum convex surface radius 4mm (0.16")
• Minimum concave surface radius 40mm (1.98")
• Minimum headroom 138mm (5.43")
• Minimum sample diameter F Mode: 8mm (0.32")

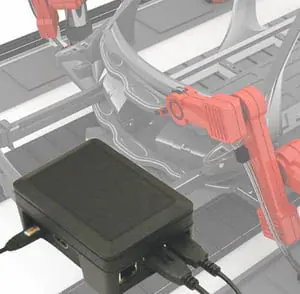

Data Output Controller for the Elcometer 456

Elcometer Data Output Controller: Serves as a bridge from the Elcometer 456 to a PLC. The Controller sends plain text in real time. This is an off the shelf Raspberry Pi controller in which our software team has written the code necessary for it to relay plain text from our Elcometer 456C series gauge. Your PLC vendor or support team should know how to take the plain text from there.
